IQSH 3100

Technical data

D [mm] 10

Further information on IQSH3100

Weight 36 g / Pcs

GTIN 4050571375966

Customs duty number 84812090

RoHS compliant Yes

Manufacturer Sang-A

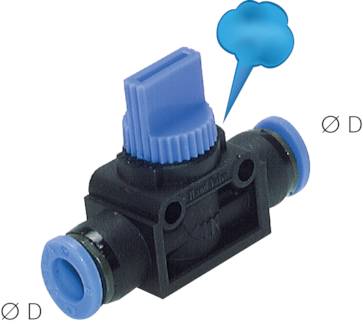

Description - 3/2 way shut-off valve 10mm, IQS standard

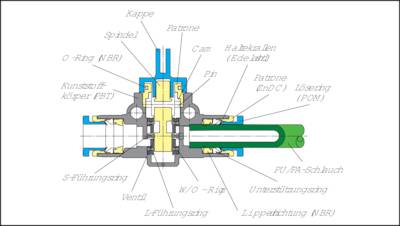

Materials:

Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:

-20°C bis +80°C

Operating pressure:

-0,95 bis 20 bar

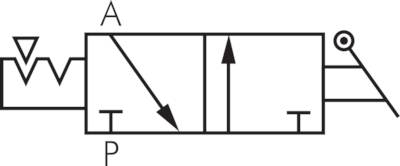

Functional principle:

The 3/2-way valves shut off the airflow and vent the secondary side.

Media:

Compressed air, neutral gases

Application example:

To control single-acting small cylinders or to shut off small pneumatic assemblies.

Advantages:

•Very compact design

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
