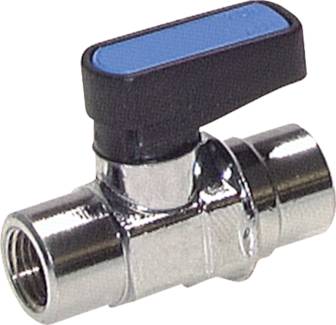

KH 14 MKC

Technical data

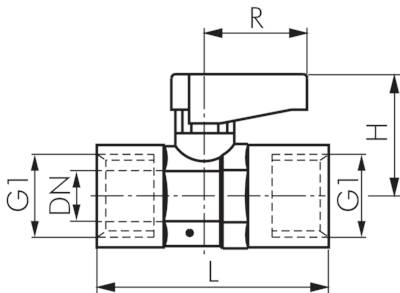

Version Female thread

L [mm] 43

G1 Rp 1/4" (female thread)

DN [mm] 5,5

H [mm] 21

R [mm] 19

Note RoHs-compliant

Weight 46 g / pc.

Further information

Customs duty number: 84818081

Description

Materials:

Housing: chrome-plated brass, ball: chrome-plated brass, seal: PTFE / NBR

Temperature range:

-20°C to max. +80°C

Operating range:

Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
