KH 38 B E
Artikelnummer:

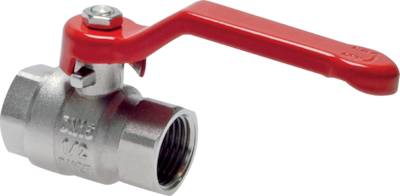

Kulventil (hona), Eco-Line, Rp 3/8", PN 25
Kulventil (hona), Eco-Line, Rp 3/8", PN 25
Beskrivning

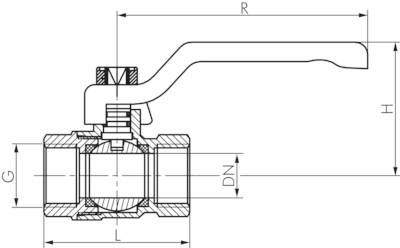

| Version | Standard |
| G | Rp 3/8" |
| DN [mm] | 10 |
| L [mm] | 41,0 |
| H [mm] | 38 |
| R [mm] | 75 |
| PN [bar] | 25 |
| Replacement handles ** | G KH 1438 B E |
| Weight | 110 g / pc. |
| Customs duty number: | 84818081 |
Description
Materials:
Housing: nickel-plated brass, ball: chrome-plated brass, seal: PTFE / NBR
Temperature range:
-20°C to max. +95°C
Operating range:
Compressed air, water, oils
Optional:
with toggle -KN (1/4" - 1 1/4")
*only suitable for water and oils, **does not fit on ball valves with toggle
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
