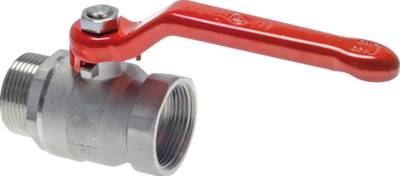

KH 34 B IA E

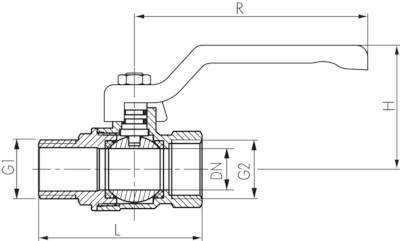

Technical data

Version Standard

G1 / G2 R / Rp 3/4"

DN [mm] 19

L [mm] 63,8

H [mm] 46

R [mm] 85

PN [bar] 25

replacement handles G KH 1234 B E

Weight 260 g / pc.

Further information

Customs duty number: 84818081

Description

Materials:

Housing: nickel-plated brass, ball: chrome-plated brass, seal: PTFE / NBR

Temperature range:

Air: -20°C to max. +95°C

Operating range:

Compressed air, water, oils

Optional:

with toggle -KN (1/4" - 1 1/4")

*only suitable for water and oils, **does not fit on ball valves with toggle

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
