R 382-10 F
Artikelnummer:

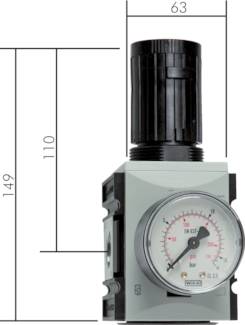

FUTURA tryckregulator,G 3/8" 0.5 - 10bar Standard
FUTURA tryckregulator,G 3/8" 0.5 - 10bar Standard
Beskrivning
| Version | Standard |
| Thread | G 3/8" |
| Pressure regulation area [bar] | 0.5 - 10 |
| Pressure gauge display [bar] | 0 - 16 |
| Mounting brackets | W 2 F |
| Coupling kit | KP 2 F |
| Coupling kit with wall bracket | KPW 2 F |
| Note | RoHs-compliant |
| Weight | 600 g / pc. |
| Customs duty number: | 84811005 |
Description
Version:
Self-relieving (with secondary vent)
Materials:
Body: Grivory® (PA 66), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10°C to max. +50°C
Input pressure:
Max. 16 bar (model series 0: max 12 bar)
Pressure gauge connection:
G 1/4"
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side, •Easy assembly of individual components using coupling kits within a model series, •Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
Switch panel thread:
M 42 x 1,5
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
<
