H 522-08 S

Properties

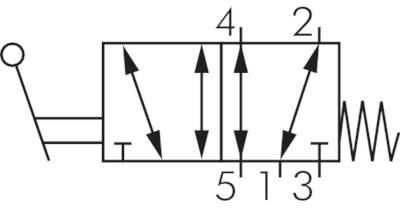

function spring return

Thread G1 (3x) G 1/4"

Thread exhaust air G2 (2x) G 1/8"

Nominal width [mm] 4,5

flow [l/min] 800

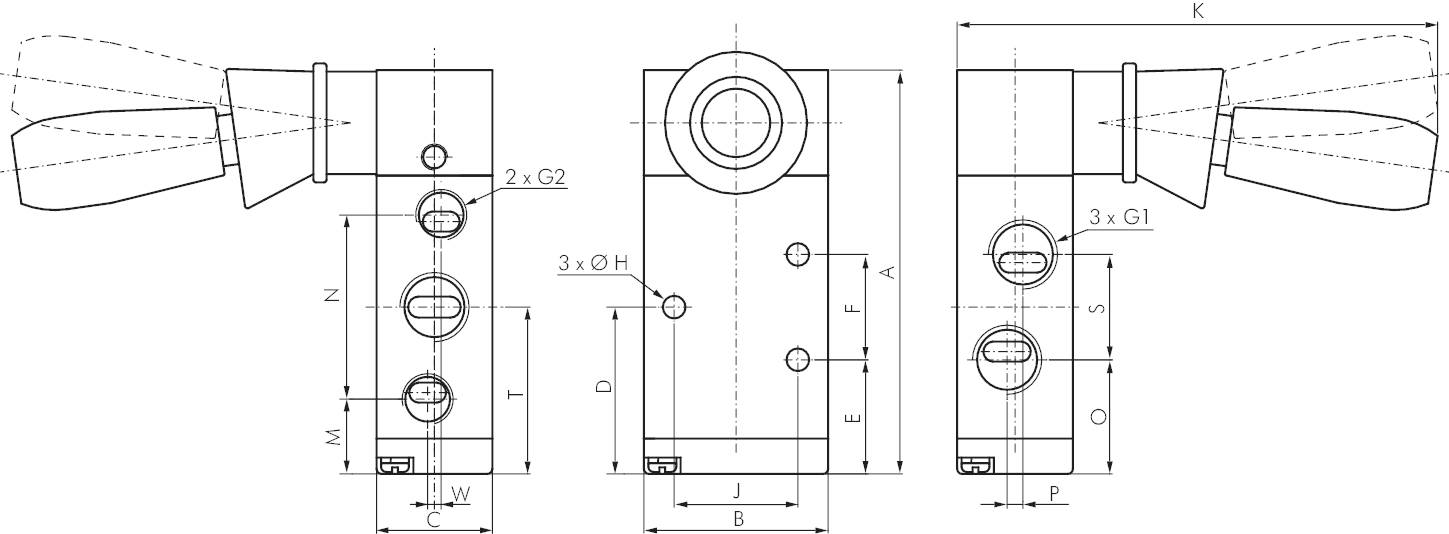

A [mm] 76,7

B [mm] 35

C [mm] 22

D [mm] 31,7

E [mm] 21,7

F [mm] 20

H [mm] 4,3

J [mm] 24

K [mm] 90

M [mm] 14,2

N [mm] 35

O [mm] 21,7

P [mm] 3

S [mm] 20

T [mm] 31,7

W [mm] 0
