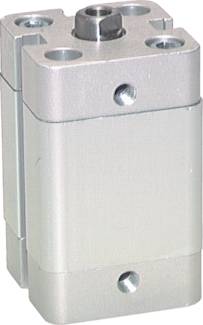

NXE 40/5

Technical data

Piston Ø [mm] 40

Stroke [mm] 5

Version Standard

Repair sets NXE 40 REP

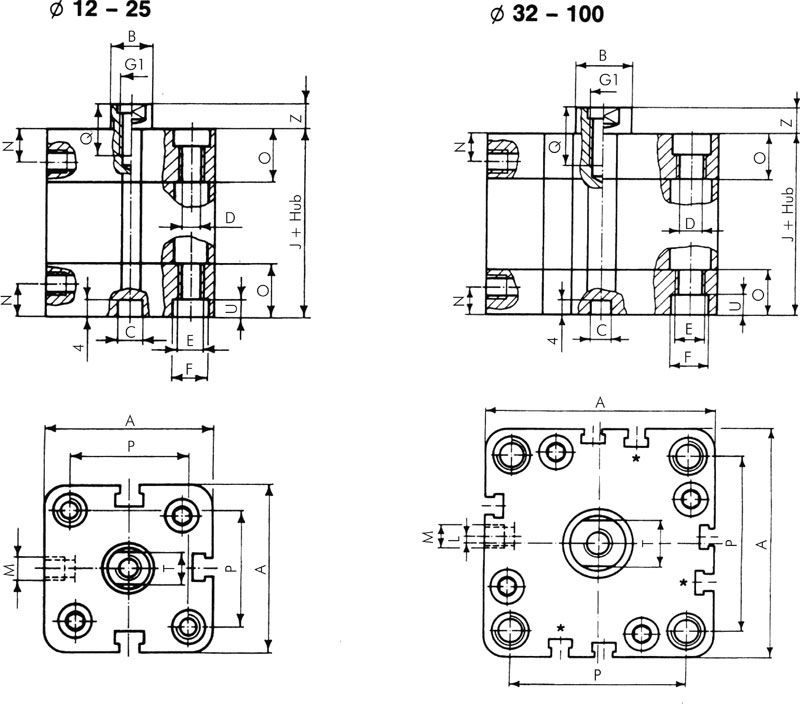

A [mm] 58

Ø B [mm] 12

Ø C [mm] 6

Ø D [mm] 5,2

E M 6

Ø F [mm] 9,0

G1 M 6

J* [mm] 45,5

L [mm] 3

M G 1/8"

N [mm] 8,0

O [mm] 14,75

P [mm] 42

Q [mm] 12

T [mm] 10

U [mm] 5,5

Z [mm] 6,5
