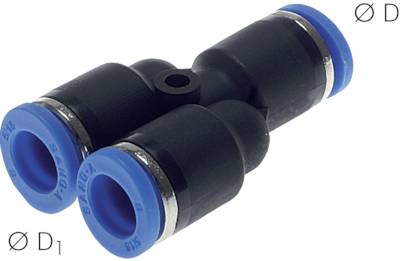

IQSY 140

Technical data

D [mm] 14

D1 [mm] 14

Note RoHs-compliant

Weight 43 g / pc.

Further information

Customs duty number: 39174000

Description

IQS push-in connector - standard:

Materials:

Body: nickel-plated brass / PA 66, seal: NBR, holding claws: stainless steel, cartridge: nickel-plated ZNDC

Temperature range:

-20°C to max. +80°C

Operating pressure:

-0,95 to 20 bar

Media:

Compressed air, neutral gases and water (water up to max 60°C may be used only after we approve the performance specifications)

Advantages:

•large product variety, •high tightness, •can be supplied with conical PTFE coated thread, •available with cylindrical thread and integral O-ring
