VP62-NBR
Artikelnummer: VP62-NBR

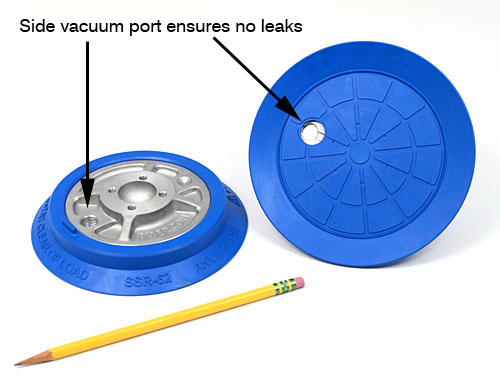

Sugkopp, 6" (152 mm) Dia. Nitril.
Sugkopp, 6" (152 mm) Dia. Nitril.
Beskrivning
| Pad Assembly Part Number and Material |
Replacement Seal Number |

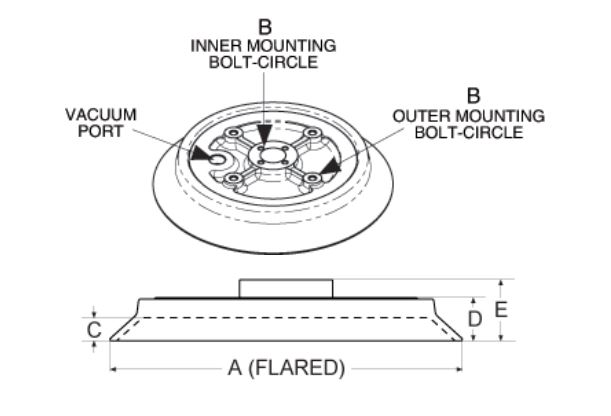

A Cup Dia. in. (mm) |
B Bolt-Circle in. (mm) |
C Flex in. (mm) |
D Height in. (mm) |
E Height with Collar in. (mm) |
Vacuum Port |
Rated Load* lbs. (kg) |
Weight lb. (kg) |
| VP62-NBR (Nitrile) (76201037) |
SSR-62 | 6.00 (153) |
(4) M6 x 1.0 holes on ø1.38 (ø35) |
0.24 (7) |
1.06 (27) |
Info to Come |
1/4" NPT | 110 (50) |
0.80 (0.3 |
