VAKUSW 18 B

Item description

Materials:

Body: zinc-plated steel or stainless steel 1.4305 (vacuum switch: brass), diaphragms**: NBR

Temperature range:

-25°C to +85°C

Switchback difference:

15 - 20% (vacuum switch 15 - 25%)

Protection class:

IP 65 (clamps IP 00)

Cable connection:

Flat connecter 2 x 6.3x0.8 (changeover contact: 3 x 6.3x0.8)

Media:

Hydraulic oil, oil emulsion, air, (also partially suitable for water)

Properties

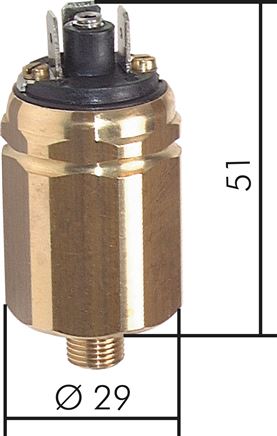

Version vacuum switch

Switch type changeover contact

Setting range [bar] -0,98 to -0,2

External thread G 1/8"

Material Brass

Safe at overpressure up to [bar] 2

Switch capacity* [mA] max. 5000 mA (AC/DC)

Operating voltage [V] 0 to 42 V (AC/DC)

H [mm] 51

Safety caps DRSS SCHUTZKAPPE
